Universal Air Pistol Windage & Elevation Sighting Adjustments Click Cheat Sheet

This list compiles the elevation and windage information for modern precision and rapid fire pneumatic air pistols that can be seen in competitions and clubs. Most recent models go first.

After the name of each model you find how many millimeters (mm) does the impact change at 10m.

The manuals are linked on the model of each pistol.

If you want to add or correct a pistol’s information, please leave a comment.

If you appreciate all the work I’ve put in creating this and other helpful pistol resources, please consider becoming a patron or to

Feinwerkbau

P 8X: 2mm per click (short model 2.4mm per click)

Feinwerkbau P8X sighting controls

This gun uses German instructions. If you turn the wheel in the direction of the arrow you either bring your shots up (T), down (H), right (L), left (R). Think of bei as too, then if the shot is too (L)eft it moves to the right, etc.


P44, P58, : 1.5mm per click

Feinwerkbau P44 sighting screws

This gun uses German instructions. If you turn the wheel in the direction of the arrow you either bring your shots up (T), down (H), right (L), left (R). Think of bei as too,then if the shot is too (L)eft it moves to the right, etc.

P11 / P11 Piccolo: 2mm per click

Feinwerkbau P11 sighting knobs

Hammerli

I really like the Hammerli and Walther way of pointing where to turn to get a result. It is graphic and easy to remember.

AP 40: 2mm per click

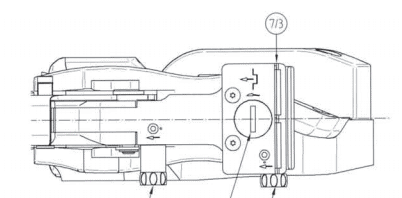

Hammerli AP40 elevation and windage signs

To bring the shots up or right anticlockwise.

AP 20: 1.4mm per click

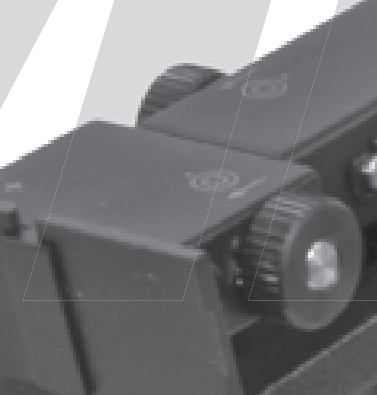

Can you send me a better picture please?

Anticlockwise moves impact towards right, clockwise brings it down.

MatchGuns / Gehmann

It looks like Gehmann are whitebranded Matchguns.

MGH1, GP1: 2mm per click

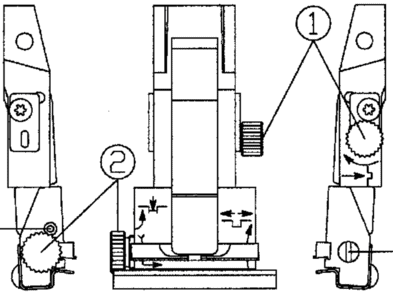

Matchguns MGH1 and GP1 sight adjustments graphic

Clockwise brings impact down or right.

From the manual of the MG1 model I have the impression that this elevation and windage is the same for all their air guns.

Morini

CM200EI:

  • ↕ elevation: 1.5mm per click
  • ↔ windage: 1mm per click

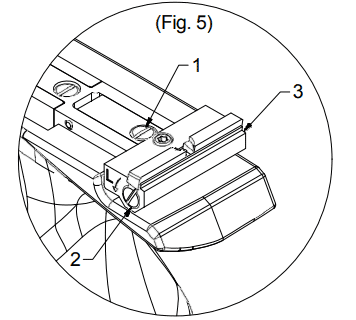

Morini CM200EI elevation and windage screws

Turn screw 1 clockwise to bring impact down and screw 2 to bring impact to the right.

CM162EI, CM162MI:

  • ↕ elevation: 1.5mm per click
  • ↔ windage: 1mm per click
Position of the Morini CM162 models elevation (1) and windage (2) screws

Turn screw 1 clockwise to bring impact down and screw 2 to bring impact to the right.

Pardini

K12, K10: 1.8mm per click

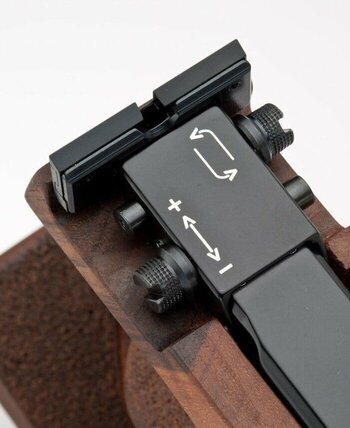

Photo Sureshot airguns

Clockwise brings impacts down (-) and right.

Steyr

LP 10, LP 50, EVO 10, EVO 10 E: 1.2mm per click

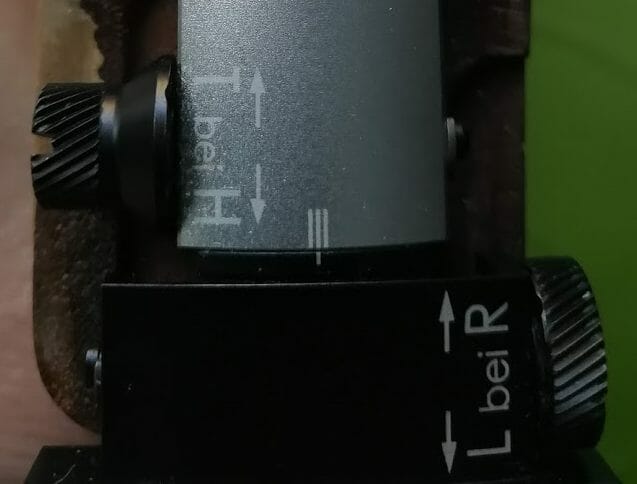

This gun uses German instructions. If you turn the wheel in the direction of the arrow you either bring your shots up (T), down (H), right (L), left (R). Think of bei as too,then if the shot is too (L)eft it moves to the right, etc.

Tesro

PA 10-2: 1.2mm per click

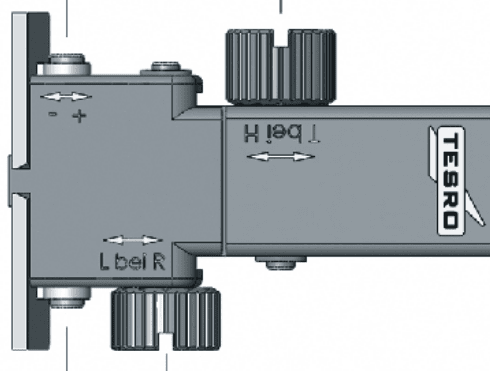

Tesro PA 10 sight adjustment knobs

This gun uses German instructions. If you turn the wheel in the direction of the arrow you either bring your shots up (T), down (H), right (L), left (R). Think of bei as too,then if the shot is too (L)eft it moves to the right, etc.

Walther

LP 500: 0.8mm per click

The arrow tells you towards which direction to turn the screw to bring the shot towards the center. As you can see in the picture, clockwise moves shots down and to the left.

LP 400: 1mm per click

Photo from Frontierarms review

Same as the LP500, clockwise to bring shots to the left or down.

LP 300:

  • ↕ elevation: ca. 1.65mm per click
  • ↔ windage: ca. 1.25mm per click

This gun uses German instructions. If you turn the wheel in the direction of the arrow you either bring your shots up (T), down (H), right (L), or left (R). Think of bei as too,then if the shot is too (L)eft it moves to the right, etc.

Older Air Pistols

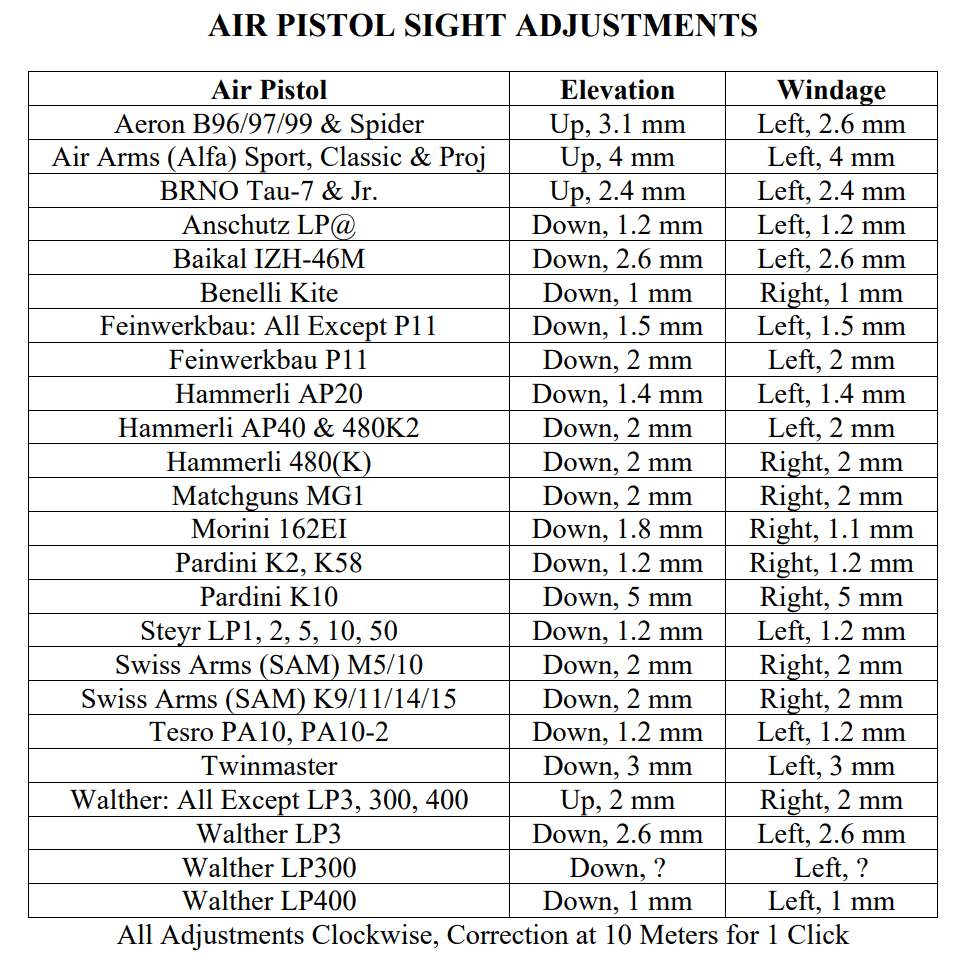

This excellent table by Doug White (GWhite on TargetTalk) has a lot of information for older models and he’s even sent an updated version:

More pistol information also available in Pilkguns’ TenP Philes.
